I. Fundamental Definition: The Genetic Rosetta Stone
A codon chart is a structured reference tool that deciphers the relationship between nucleotide triplets in messenger RNA (mRNA) and their corresponding amino acids in protein synthesis. This molecular dictionary translates the 4-letter alphabet of nucleic acids (A, U, C, G) into the 20-amino acid vocabulary of proteins through the universal genetic code. The chart systematically maps all 64 possible codons—61 specifying amino acids and 3 signaling translation termination—enabling precise interpretation of genetic information (#visual).
(Fig. 1: Standard Codon Chart Structure)
Description: Tabular layout organized by nucleotide positions: First base (vertical axis), second base (horizontal header), and third base (internal cells). Each cell displays both the codon (e.g., UUU) and its encoded amino acid (Phenylalanine). Stop codons (UAA, UAG, UGA) and start codon (AUG/Methionine) are highlighted.
II. Structural Architecture: Navigating the Genetic Matrix
A. Hierarchical Organization
The chart employs a logical three-tiered structure:
- First Nucleotide: Determines the row (U/C/A/G)
- Second Nucleotide: Defines the column group (e.g., U-column: UU_/UC_/UA_/UG_)
- Third Nucleotide: Specifies the exact codon within boxes (#visual).
This design exploits codon degeneracy—where amino acids like Serine (UCU/UCC/UCA/UCG/AGU/AGC) occupy multiple positions—while ensuring rapid identification (#visual).
B. Key Symbolic Elements
| Element | Symbol | Biological Significance |
|---|---|---|
| Start Codon | AUG | Translation initiation point; encodes Methionine |
| Stop Codons | UAA, UAG, UGA | Protein synthesis termination signals |
| Amino Acids | 3-letter code (e.g., Leu, Val) | Building blocks of polypeptide chains |
III. Operational Mechanics: From Codon to Protein
A. Translation Protocol
To decode a codon sequence:
- Identify the first mRNA base → locate corresponding row
- Find the second base → navigate to column group
- Match the third base → read amino acid designation
Example:
- Codon: UAC
- Step 1: U-row
- Step 2: A-column group
- Step 3: C-position → Tyrosine (#visual)
B. Directionality Rule
All sequences must be read 5’→3′ to maintain correct reading frame alignment with ribosomal translation machinery (#visual).
IV. Biological Significance: Beyond the Chart
A. Central Dogma Implementation
The codon chart operationalizes the flow of genetic information:
Molecular conversion pathway enabled by codon mapping
B. Evolutionary Insights
- Universal Code: Nearly identical across all domains of life (minor mitochondrial variations)
- Degeneracy Buffer: Multiple codons per amino acid protect against deleterious mutations
- Conservation Patterns: Identical codon-amino acid pairings in humans and bacteria (#visual)
V. Practical Applications: Revolutionizing Biotechnology
A. Genetic Engineering
- Recombinant Protein Production: Optimizing codon usage for insulin/hormone expression in bacterial systems (#visual)
- CRISPR Design: Editing codon sequences to correct disease-causing mutations (#visual)
B. Medical Innovations
| Application | Codon Chart Role |
|---|---|
| mRNA Vaccines | Codon optimization for enhanced spike protein expression |
| Cancer Therapeutics | Identifying mutation-specific neoantigens (e.g., BRAF V600E) |
| Genetic Disorder Diagnosis | Detecting aberrant stop codons in cystic fibrosis |
VI. Specialized Variants: Advanced Decoding Tools
A. Circular Codon Wheel

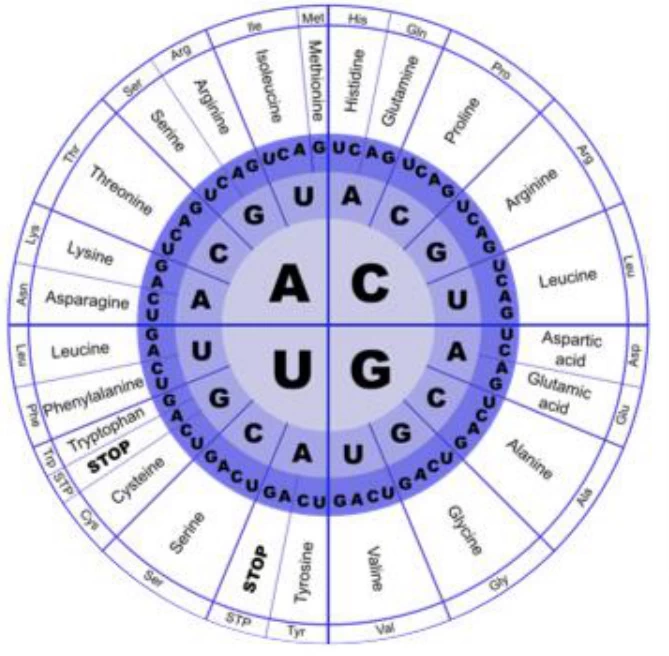

(Fig. 2: mRNA Codon Wheel)
Description: Concentric circles with first base (inner ring), second base (middle ring), third base (outer ring). Radial segments display amino acids. Advantages: Rapid visual scanning and pattern recognition of synonymous codons (#visual).
B. Digital Analysis Platforms
CodonExplorer software enables:
- Genome-wide codon frequency statistics
- Horizontal gene transfer detection
- Expression optimization algorithms (#visual)
Conclusion: The Enduring Molecular Compass
The codon chart remains indispensable to molecular biology through its unparalleled ability to:
- Democratize Genetic Decoding – Enabling students and Nobel laureates alike to interpret DNA sequences
- Bridge Biological Scales – Connecting nucleotide-level information to organismal phenotypes
- Drive Innovation – Catalyzing breakthroughs from synthetic biology to personalized medicine
“Where DNA stores life’s information and proteins execute its functions, the codon chart provides the essential translation grammar—transforming static sequences into dynamic biological narratives.”
— Molecular Biology Review
Future developments focus on AI-powered codon optimizers for gene therapy (2026) and quantum-computing enhanced charts predicting folding dynamics (2028).
